CAST Classic Custom Insignia Series Large China Area/Path Light

CISX2CB

Description

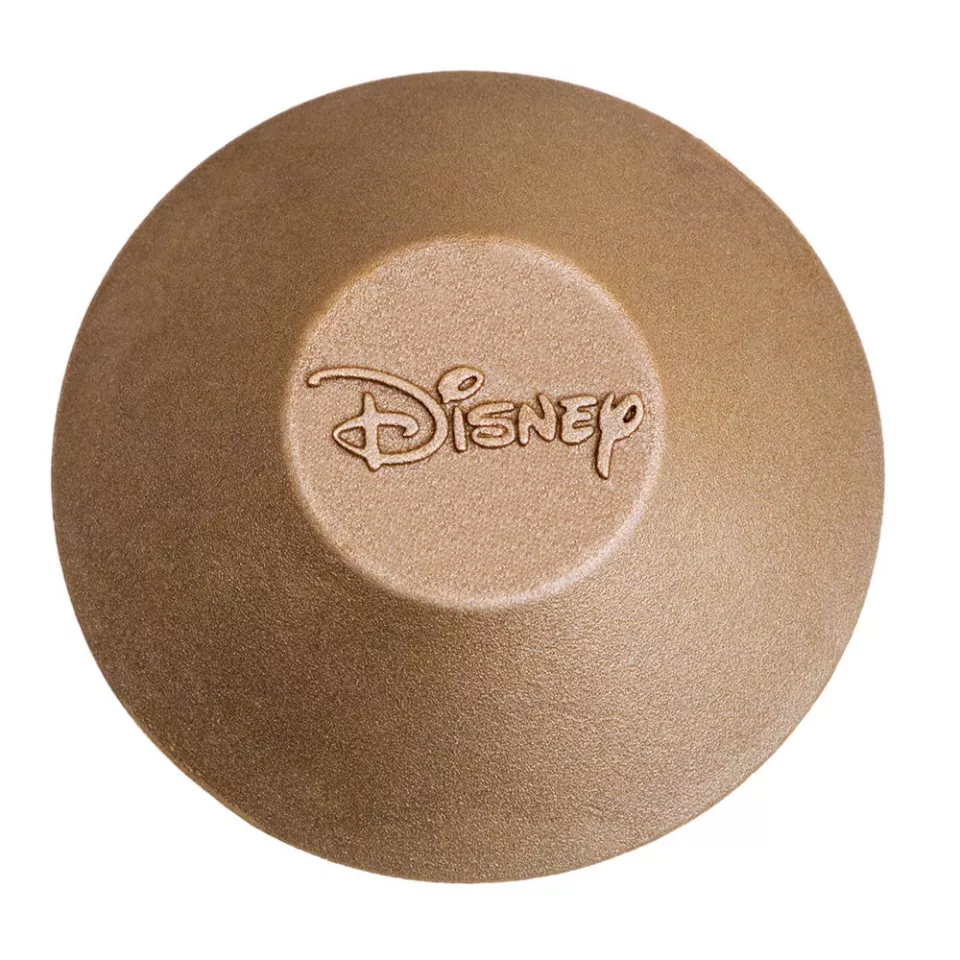

Hotels, golf courses, corporate headquarters, and others can have their logos or custom artwork embossed on our solid bronze Large China Hats. This is an exceptionally unique and valuable offering for high-end clients.

Made with 76% USA content!

Applications

Suitable for the illumination of pathways, driveways, garden beds, and steps. Ideally situated along the opposing sides of path in a zigzag fashion. Spacing these fixtures 10 to 15 feet apart with ensure sufficient illumination for safe passage.

Features

  • Easily converts to LED by adding the CALED2 Module
  • Client’s logo or artwork permanently embossed
  • Embossing available sanded flat or sculpted
  • Solid sand-cast bronze hat and body
  • Heavy-gauge copper stem
  • Fixture provided with large SOLD BRONZE talon mount stake with three 1/4" x 7" stainless steel spikes (CTSL1CB)
  • Glare-free reflected light source – Dark Sky Compliant
  • UL listed, made in the USA
  • Pre-wired with 25’ #16-2 tin-coated No-Ox® marine grade wire
  • High-temp socket
  • Spider Splice® ready
Models
  • CISX2CB
Quick Info
  • CAST Lighting magnetic toroidal core Transformers (Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt)
  • CAST No-Ox® Tin-Coated Marine-Grade Wire (Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.)
  • Astronomical Digital & Mechanical Timers
  • Photo Cells
  • Seamless non-insulated crimp connections & Heat shrink for wire connections

Specifications

  • Dimensions and Weight:
    • Body, and Hat: 24.5" x 9.0" wide
    • Area for custom-embossed artwork: 3.5”
    • Stake: 8”
    • Weight : 12 lbs
  • Lamp Specifications: Lamp: 12V S8 Wedge Base (35W max.) (not included).
  • Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
  • Construction:
    • Hat and Body: Solid Sand-Cast Bronze (there is a pre-production charge to make the custom mold for this lamp)
    • Stake: Large SOLD BRONZE talon mount stake with three 1/4" x 7" stainless steel spikes (CTSL1CB)
    • Stem: Heavy duty copper, threaded 3/8” NPS (stem top), 1/2” NPT (stem bottom) (0.115” wall thickness)
    • Socket Assembly: High-temperature composite S8 socket rated to 220 degrees Celsius.
    • Wiring: Tin-coated No-Ox® marine-grade wiring (inside fixture and external 25 ft. #16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
  • Packaging:
    • Hats Packed 3/box; fully assembled.
    • Stem assemblies (CLAA) 3/box.
