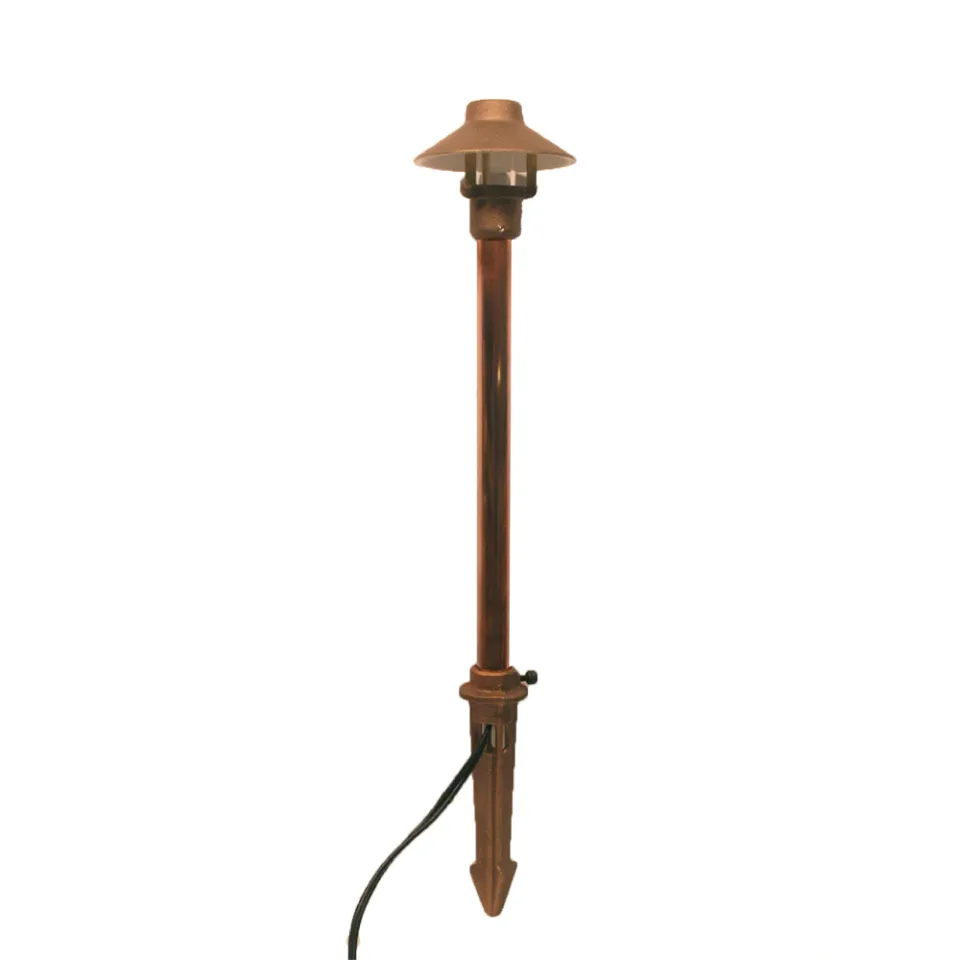

CAST Classic Mini China Hat Area/Path Light

CCH5CB

This ultra-compact and rugged solid bronze & copper path/area light provides a soft glare free illumination. Especially useful in plant containers such as urns and garden boxes. Fixture can be stake or canopy mounted.

Suitable for lighting walkways, planting beds, planters, and niche applications

Solid bronze hat and vase
Solid Bronze stake
Heavy-gauge copper stem
Thick-walled borosilicate glass lamp enclosure
Pre-wired with 25’ #16-2 tin-coated No-Ox® marine grade wire
High-temp socket
Spider Splice® ready

CCH5CB

CAST Lighting magnetic toroidal core Transformers : Journeymen® 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
CAST No-Ox® Tin-Coated Marine-Grade Wire (Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges)
Astronomical Digital & Mechanical Timers
Photo Cells
Seamless non-insulated crimp connections & Heat shrink for wire connections

Dimensions and Weight:
- Stem, Body, and Hat: 13.25” tall x 4” wide
- Stake 6.25”
- Weight: 5 lbs.

Listing: conform to UL Std’s 1838 & 8750; CE; Certified to CAN/CSA Std’s C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B conducted and radiated. RoHs.

Lamp Specifications For CCH5CB

*2.5W, 9-20 volt operating range, G4 Bi-pin LED Lamp (SLBP250L) included.

*Halogen Option: 12V 10W G4 Bi-pin- 20W max. (CJC10W).

Construction:

Hat and Body: Solid Bronze
Stake: Solid Eurometal
Stem: Heavy gauge copper (0.05" wall thickness) unthreaded end to secure in stake with set screw (top and bottom), 1/2" NPT (stem bottom).
Socket Assembly: CCH5CB: High-temperature composite JC/G4 socket rated to 220º C; CCH5LED1: Integrated LED
Wiring: Tin-coated No-Ox® marine-grade wiring (inside fixture and external 25 ft. #16-2 lead); socket wire crimped and environmentally sealed with waterproof shrink tubing.
Packaging:
- Packed 3/box, partially assembled

CAST / Source Lighting® Lamp Guide

CAST Landscape Lighting Catalog

17.5MB Download

CAST Product Reference Guide (includes CAST Landscape and SOURCE by CAST products)

Classic Mini China Hat Area/Path Light: Product Sheet

451.8KB Download

Landscape Warranty

79.2KB Download

Mini China Hat Path Light: Specification Details

770.8KB Download

Source Lighting Catalog
